1. Rich decoration effects:

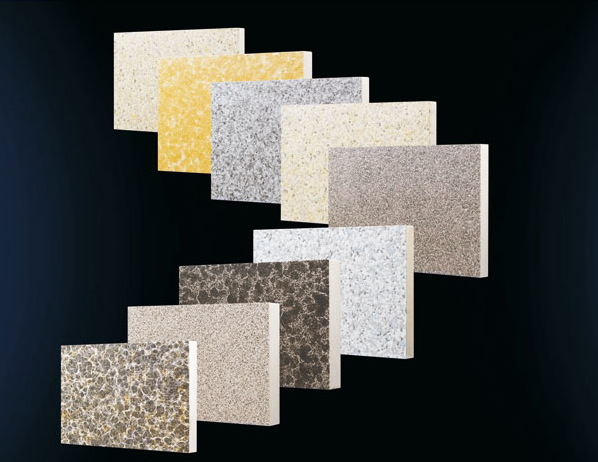

Expanded perlite insulation decorate integration board has been developed hundreds of decoration effects, it has the characteristics of color diversity and texture homogeneity, provides more choices for building exterior wall decoration.
Application: public buildings, hotel, villa, commercial building property, etc.
2. Product characteristic:
Class A1 fireproofing (mass loss below 7%) with extremely low water absorption rate (0.5%), good water resistance; stable material, ceramic insulation plate and buildings with same life (including the facing layer); the thermal conductivity up to 0.07(W/ (m.K)).
Veneer effect with high quality, good repeatability, and the extremely rich.
The construction technology is simple, which just needs to adopt cement based bonded wet paste and can reduce the construction period; while other common energy-saving insulation process as the interface layer, insulating layer, anti-crack reinforcement layer, facing layer and so on, can have more than 10 procedures, with long duration and quality problems difficult to control.
3. Technical parameters:
Item | Unit | Standard | Detection value |
thermal insulation layer density | Kg/m3 | 250-280 | 270 |
compressive strength | MPa | ≥0.8 | 3.5 |
tensile strength | MPa | ≥0.20 | 0.26 |
volumetric water absorption | % | ≤1.0 | 0.8 |
dry constringency value | Mm/m | ≤0.30 | 0.20 |
Thermal conductivity (average temperature 25℃) | W/(m.k) | ≤0.08 | 0.07 |
